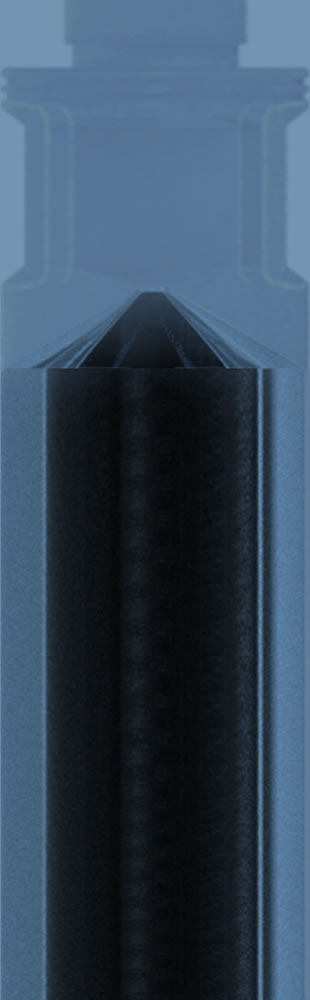

Wireless Pressure Gauge

The OCULUS gauge records pressure and temperature precisely, it is rugged and able to transmit high resolution data for DST operations and production wells.

Specifications

Oculus (ST)

Max Temp C°(F°): 150° (302°)
Min Temp C°(F°): -20° (-4°)
Max Duration @C: >7y @100, >5y @130, >1y @150

Oculus (HT)

Max Temp C°(F°): 177° (350°)
Min Temp C°(F°): -0° (32°)
Max Duration @C: >120d @165, >80d @177

Oculus (XT)

Max Temp C°(F°): 192° (377°)
Min Temp C°(F°): -0° (-32°)
Max Duration @C: >40d @185, >21d @192

Applications

Metrol has used OCULUS for:

  • stimulation & fracing
  • acid jobs
  • gravel packs
  • DST transient analysis
  • leak detection

Features

10k, 16k, 20k, 25k (psi)

Pressure Ranges

+/- 0.025% of Full Scale

PRESSURE Accuracy

0.0008psi (1sec sampling)

PRESSURE Resolution

Negligible

PRESSURE Drift @20°C

Benefits

4,500,000 data samples (P+T)

Memory Capacity

Dependent on Duration required

Length

1.25" (1.37" ext'd Duration)

Diameter

Progammable inhole 1/64s - 120s

sample rates

YES

Paragon enabled
