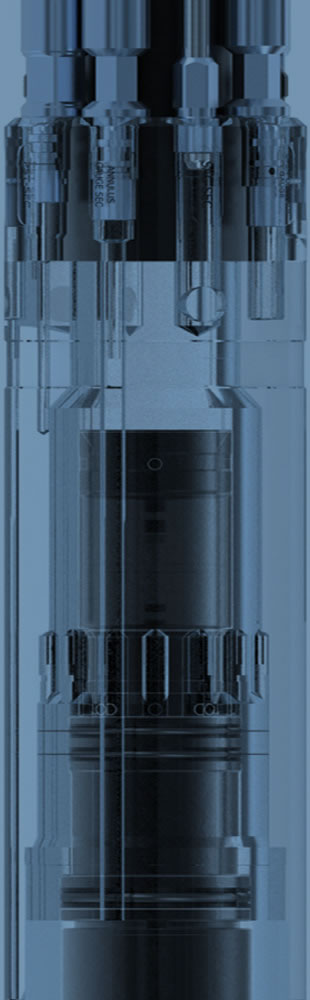

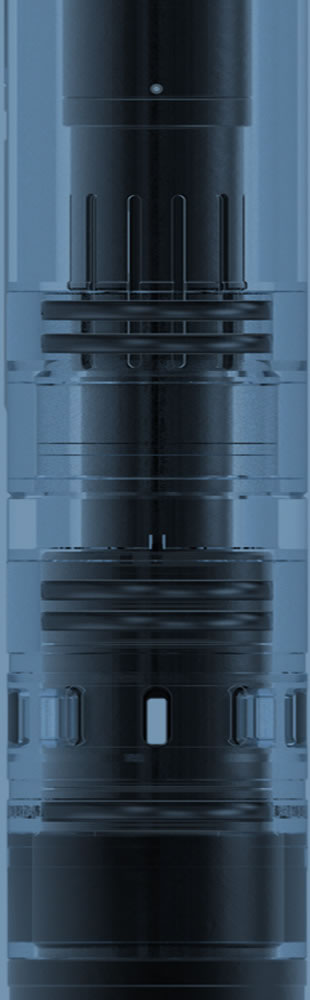

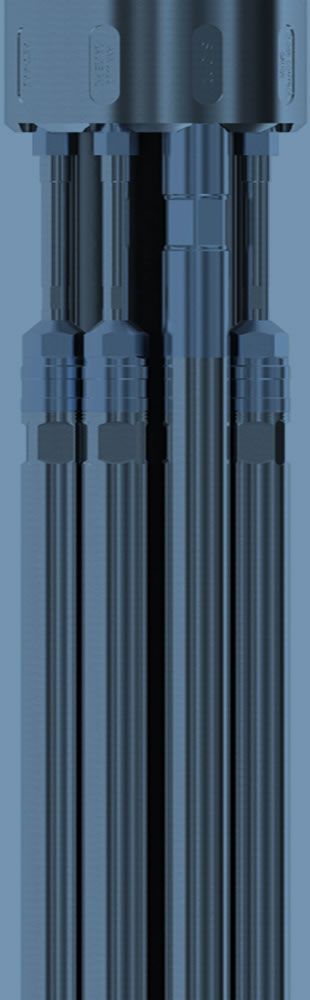

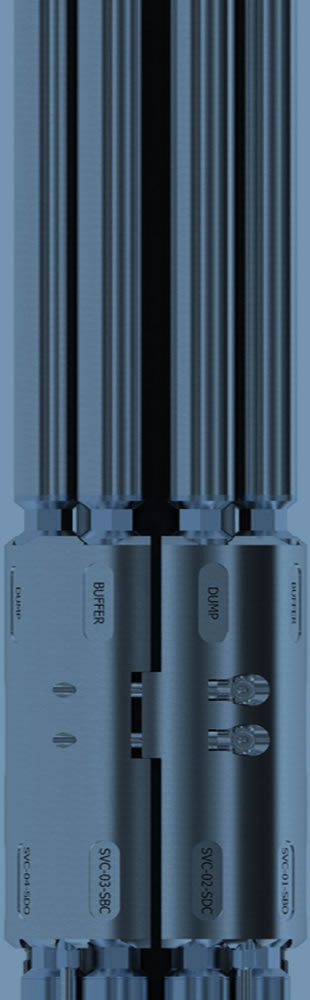

Single Shot Wireless Sliding Sleeve

FLOW-SURE SS is a wirelessly controlled, single shot, hydrostatic pressure operated, in-flow control or circulating valve.

Specifications

5.5’’ [139.7mm]

Max. OD

2.25’’ [57mm]

Tool ID

3.976sq.in[2565mm2]

ID Flow Area

5.293sq.in[3415mm2]

Port Flow Area

12,000psi[82MPa]

Differential Pressure

15,000psi[103MPa]

Max. Annular Pressure

Applications

  • Multi-zone testing
  • Extended build-up
  • Circulation valve
  • Alternate flow path
  • Back-up to well test valve

Features

  • Tool operations recorded in memory for post job analysis
  • Options to run multiple sleeves in same string and operate independently
  • Dual redundant control system
  • Non-elastomeric primary seals
  • Built-in control system diagnostic pressure monitoring

Benefits

  • Wireless control
  • No control lines
  • No packer feed-throughs
  • Activation and sleeve position confirmation provided at surface
  • H2S, CO2 and acid compatible
